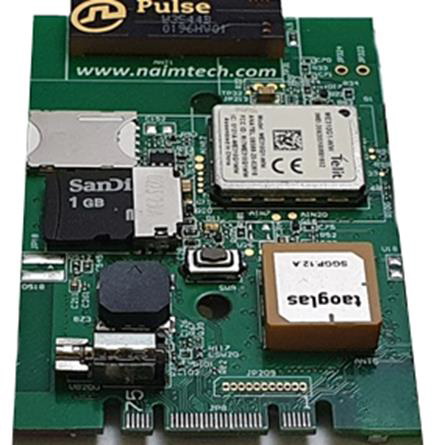

NaimTech IoT Cellular Multi Sensor Board

Main Features

Telit OneEdge is an innovative module-embedded software system with pre-packaged, secure, easy-to-use deployment and management tools.

Telit modem compliant to 3GPP Release 14 Cat M1/NB2, tailored for

IoT devices

Online authentication & updates for device lifetime.

Many options of sensors for wide verity of uses.

Hardware

MCUs Options:

  1. No external MCU -Telit modem internal MCU only.
  2. STM32 ARM Ultra-low-power Arm® Cortex®-M4 32-bit MCU+FPU, 100DMIPS, 256KB Flash, 64KB SRAM
  3. ATMEL ARM® Cortex®-M0+ CPU running at up to 48 MHz



I/Os Options:

  • I2C FM+(1 Mbit/s),
  • SPI runs at up to 40MHz
  • UART & USB
  • 5x 12-bit ADC input I/O
  • 2X PWM
  • 3x Digital inputs
  • 5x Digital outputs (O.C, Relay)
  • 4 x LEDs

Operating Temperature:

-40~85°C



Wireless connections:

Telit cellular modem compliant to 3GPP Release 14 Cat M1/NB2, tailored for IoT devices

Memory:

Serial Flash or Micro SD

Sensors:

  • 3 Axis Accelerometer
  • Embedded GNSS (GPS, GLONASS, Beidou, Galileo)

Certification:

CE / FCC / RoHS
